Laying out models is quick and efficient with the sophisticated drawing tools, or use one of the import options to bring in data from CAD, spreadsheet, or database programs. Slabs or foundations can be of any shape and can include edges shaped with circular and spline curves.

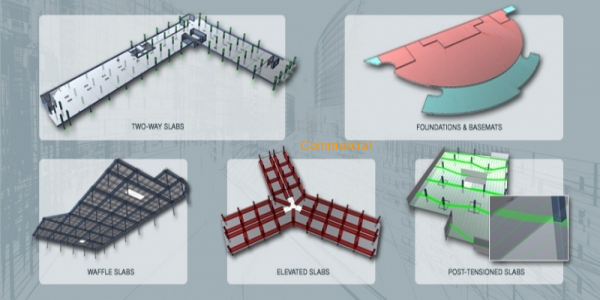

Post-tensioning may be included in both slabs and beams to balance a percentage of the self-weight. Suspended slabs can include flat, two-way, waffle, and ribbed framing systems. Models can have columns, braces, walls, and ramps connected from the floors above and below. Walls can be modeled as either straight or curved.
Mats and foundations can include nonlinear uplift from the soil springs, and nonlinear cracked analysis is available for slabs. Generating pattern surface loads is easily done by SAFE with an automated option. Design strips can be generated by SAFE or drawn in a completely arbitrary manner by the user, with complete control provided for locating and sizing the calculated reinforcement. Finite element design without strips is also available and useful for slabs with complex geometries.
Comprehensive and customizable reports are available for all analysis and design results. Detailed plans, sections, elevations, schedules, and tables may be generated, viewed, and printed from within SAFE or exported to CAD packages.
SAFE provides an immensely capable yet easy-to-use program for structural designers, providing the only tool necessary for the modeling, analysis, design, and detailing of concrete slab systems and foundations.
Specifications
| Category | Structural systems, Plates, Structural systems, Beams, Structure types, Concrete structures, General Finite Element Programs, Structural systems, Foundations |
| License Type | Commercial |
| Operating Systems | WinXP, Win7, WIn8, Win10 |
| Developer | Computers and Structures, Inc. |
| Developer Website | http://www.csiamerica.com/ |
| Developer Email | [email protected] |
